Torque multipliers are essential tools across diverse industries, with prominent applications in automotive, construction, and manufacturing sectors. They are designed to amplify the torque applied to a fastener, making it easier to achieve the desired tightness without requiring excessive physical effort. In this article, we will explore what a torque multiplier is, the various types available, their operational mechanisms, the reasons for their usage, how to utilize them effectively, and how to select the appropriate one to meet your specific needs.

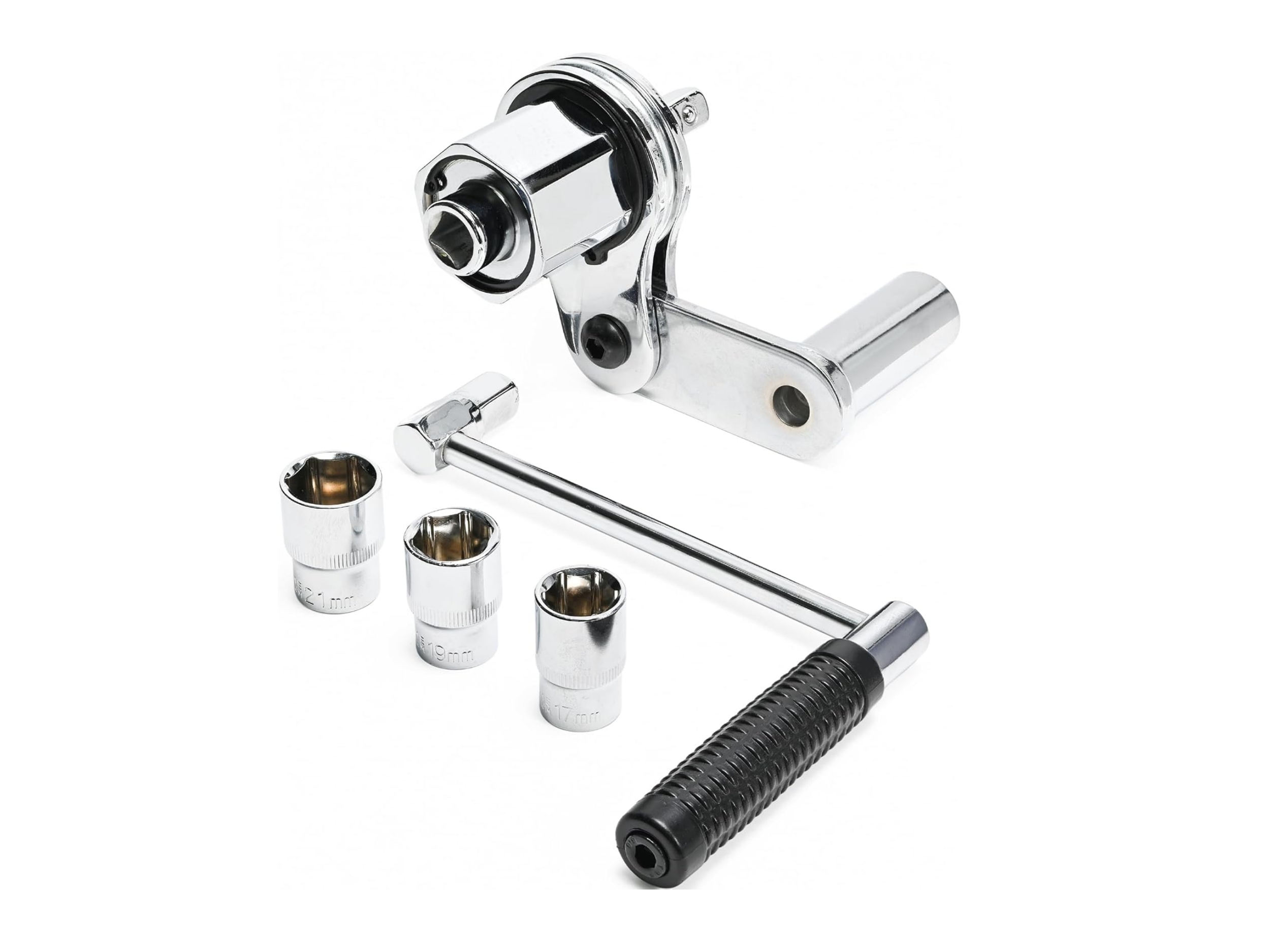

What is the Torque Multiplier?

A torque multiplier is a mechanical device that increases the torque output from a given input. It allows users to apply a higher torque to a fastener than what they could achieve with a standard wrench or ratchet. This is particularly useful in situations where high torque is required, such as tightening lug nuts on vehicles or securing large bolts in construction projects.

The basic principle behind a torque multiplier is leverage. Through the employment of gears or other mechanical arrangements, the tool can magnify the input torque, thereby enabling a greater force to be imposed on the fastener. This not only makes the job easier but also reduces the risk of injury from overexertion.

Different Types of Torque Multipliers

Torque multipliers come in various types, each designed for specific applications. Here are some of the most common types:

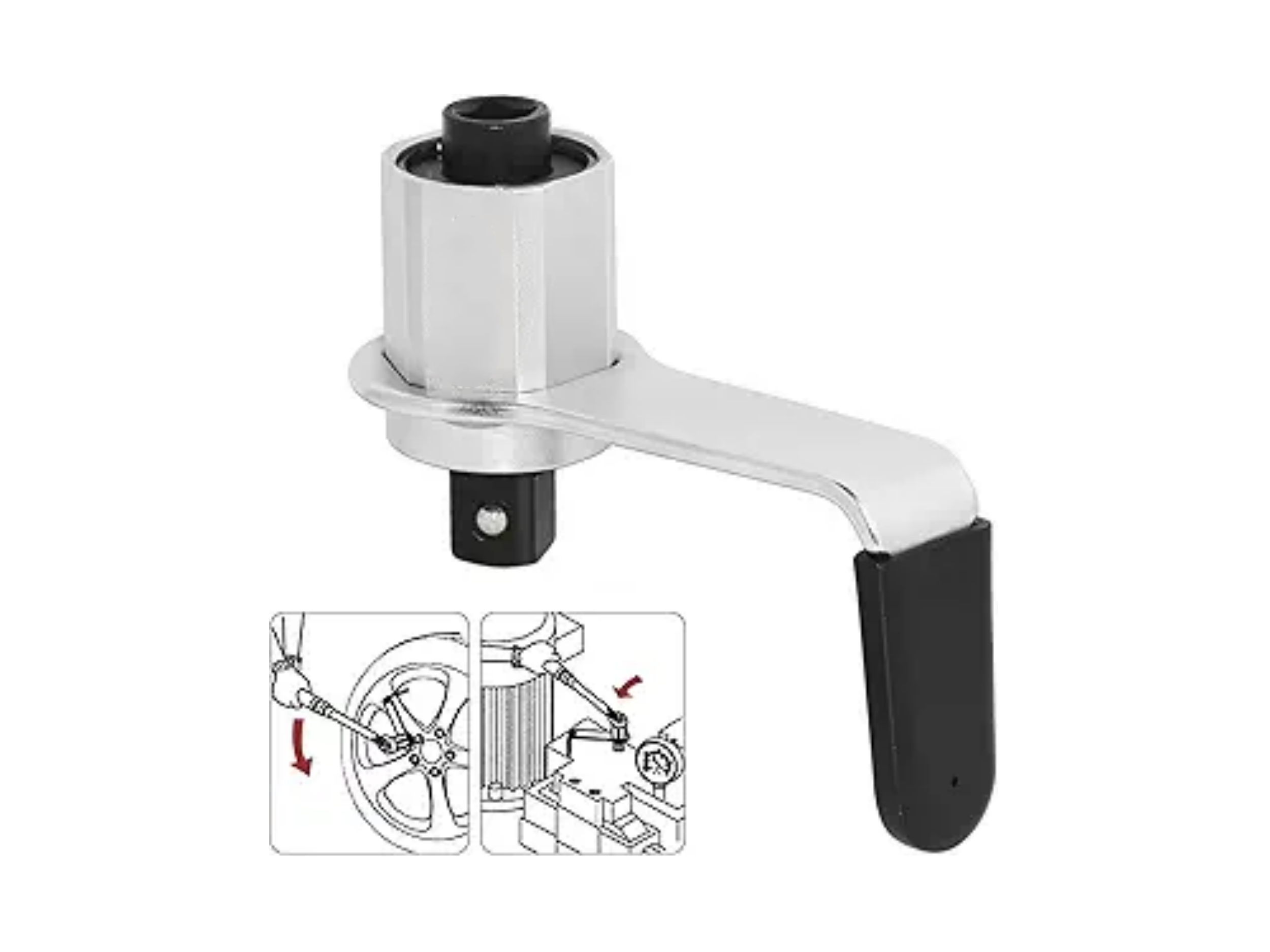

Manual Torque Multipliers

Manual types are operated by hand and typically consist of a ratchet mechanism. They are portable and do not require any external power source, making them ideal for fieldwork or situations where electricity is not available.

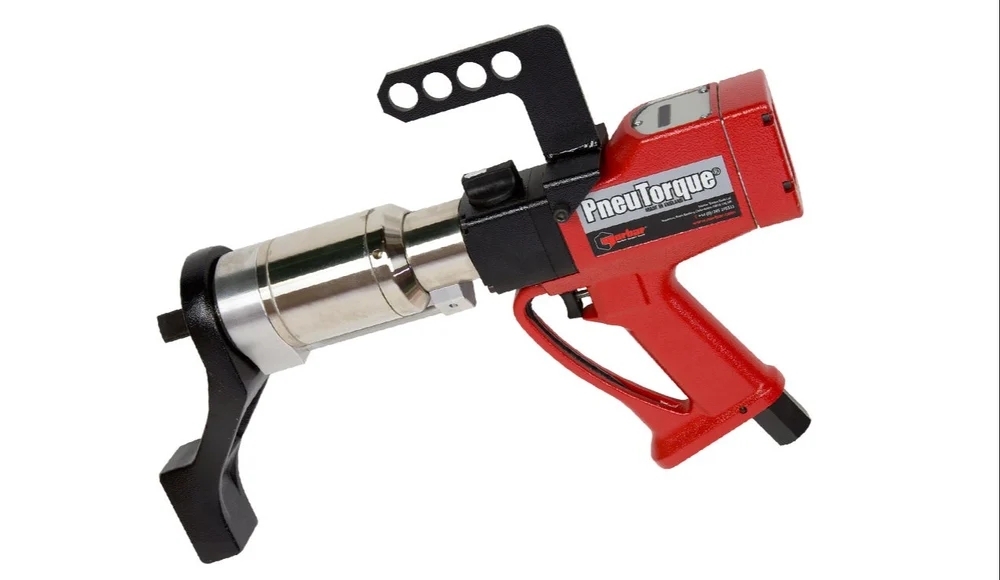

Pneumatic Torque Multipliers

These Pneumatic torque multipliers use compressed air to operate and are often used in industrial settings. They provide a high torque output with minimal effort from the user, making them suitable for heavy-duty applications.

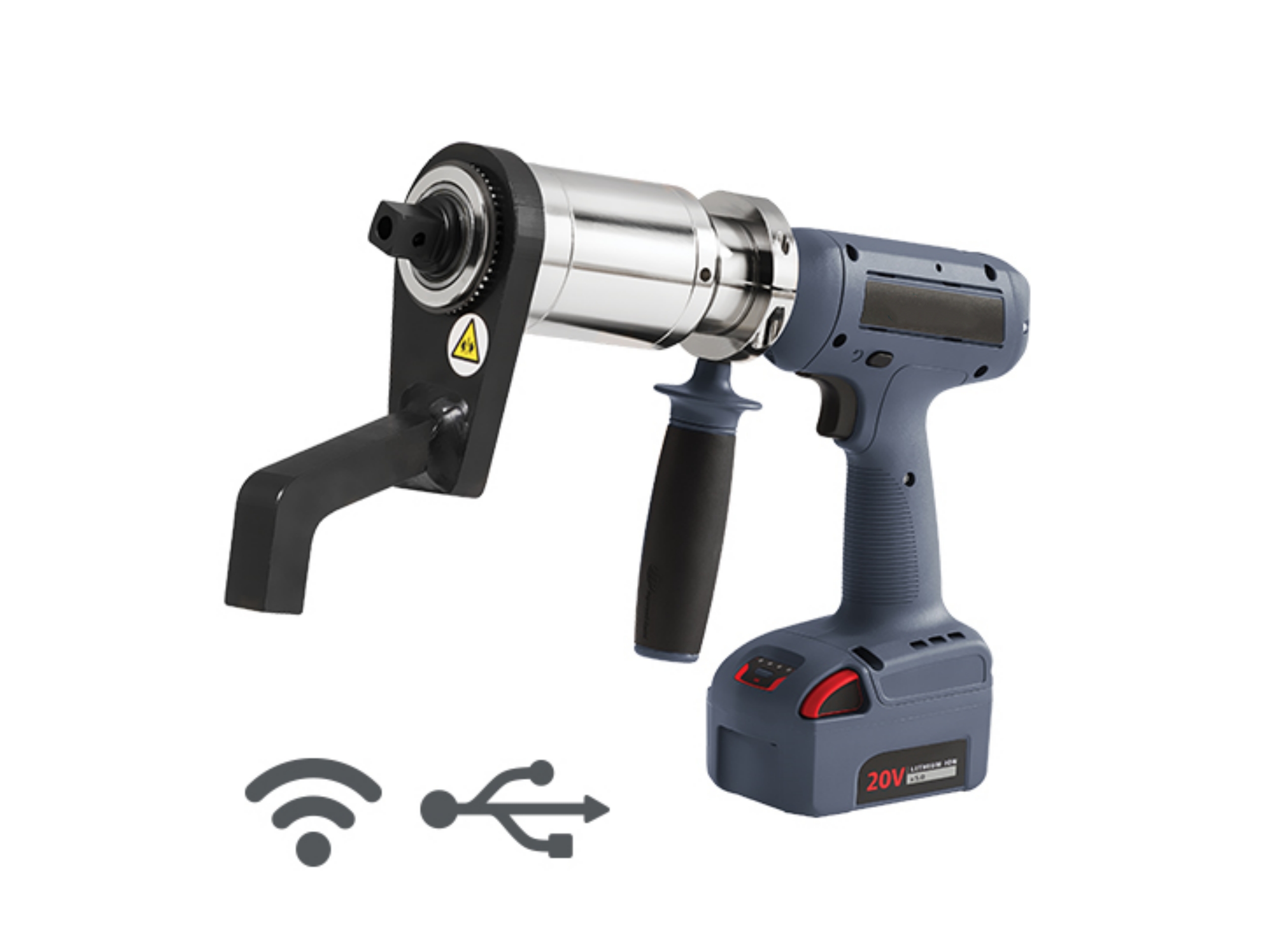

Electric Torque Multipliers

The electric modes are powered by electricity and can deliver consistent torque levels. They are often used in assembly lines and manufacturing processes where precision and speed are essential.

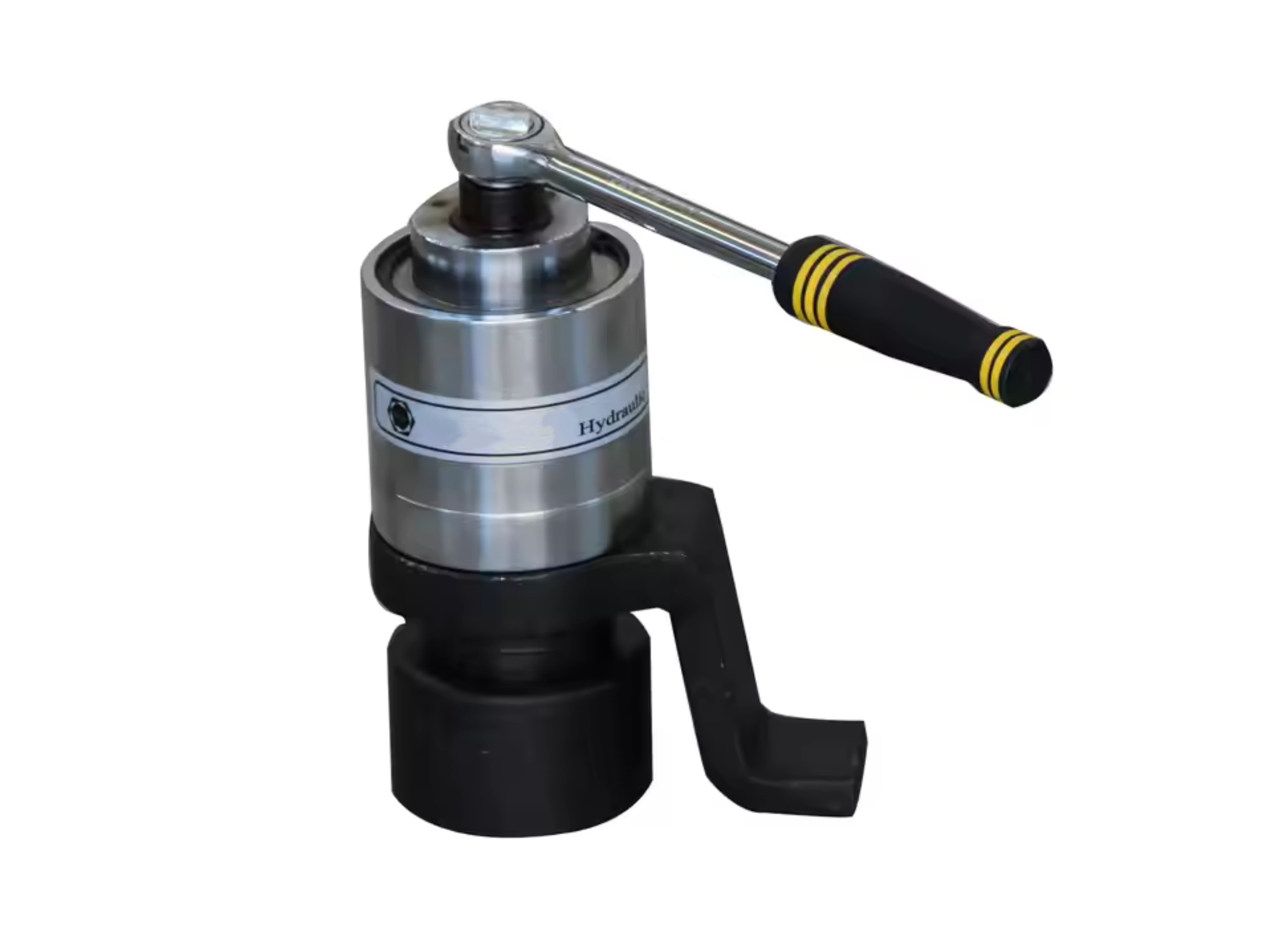

Hydraulic Torque Multipliers

For hydraulic torque multipliers, use hydraulic pressure to amplify torque. They are particularly useful for large bolts and fasteners that require significant force to tighten.

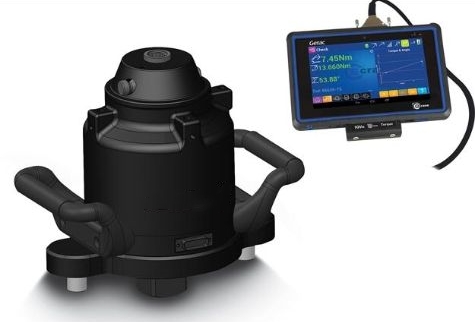

Digital Torque Multipliers

These advanced tools come equipped with digital displays that provide real-time torque readings. They are ideal for applications where precise torque specifications are critical.

How Does Torque Multipliers Work?

The operation of a torque multiplier is based on the principle of mechanical advantage. When you apply a certain amount of torque to the input side of the tool, the internal gearing system multiplies that torque on the output side.

For example, if a torque multiplier has a gear ratio of 4:1, applying 10 Nm of torque at the input will result in 40 Nm of torque at the output. This means that the user can achieve a higher torque without needing to exert the same amount of force.

The internal components of a torque multiplier typically include gears, a housing, and an input/output drive. The gears are engineered to rotate in a manner that amplifies the input torque. The housing safeguards the internal parts and offers a handle for the user’s grip.

Why We Use Torque Multipliers?

Torque multipliers are used for several reasons:

1.Efficiency: They allow users to achieve high torque levels quickly and easily, reducing the time and effort required for tasks.

2.Safety: By minimizing the physical effort needed to tighten fasteners, torque multipliers help reduce the risk of injury associated with overexertion.

3.Precision: Many torque multipliers come with torque settings or digital displays, allowing users to apply the exact amount of torque needed for a specific application.

4.Versatility: With various types available, torque multipliers can be used in a wide range of applications, from automotive repairs to heavy machinery maintenance.

5.Reduced Wear and Tear: By applying the correct amount of torque, users can prevent damage to fasteners and components, extending their lifespan.

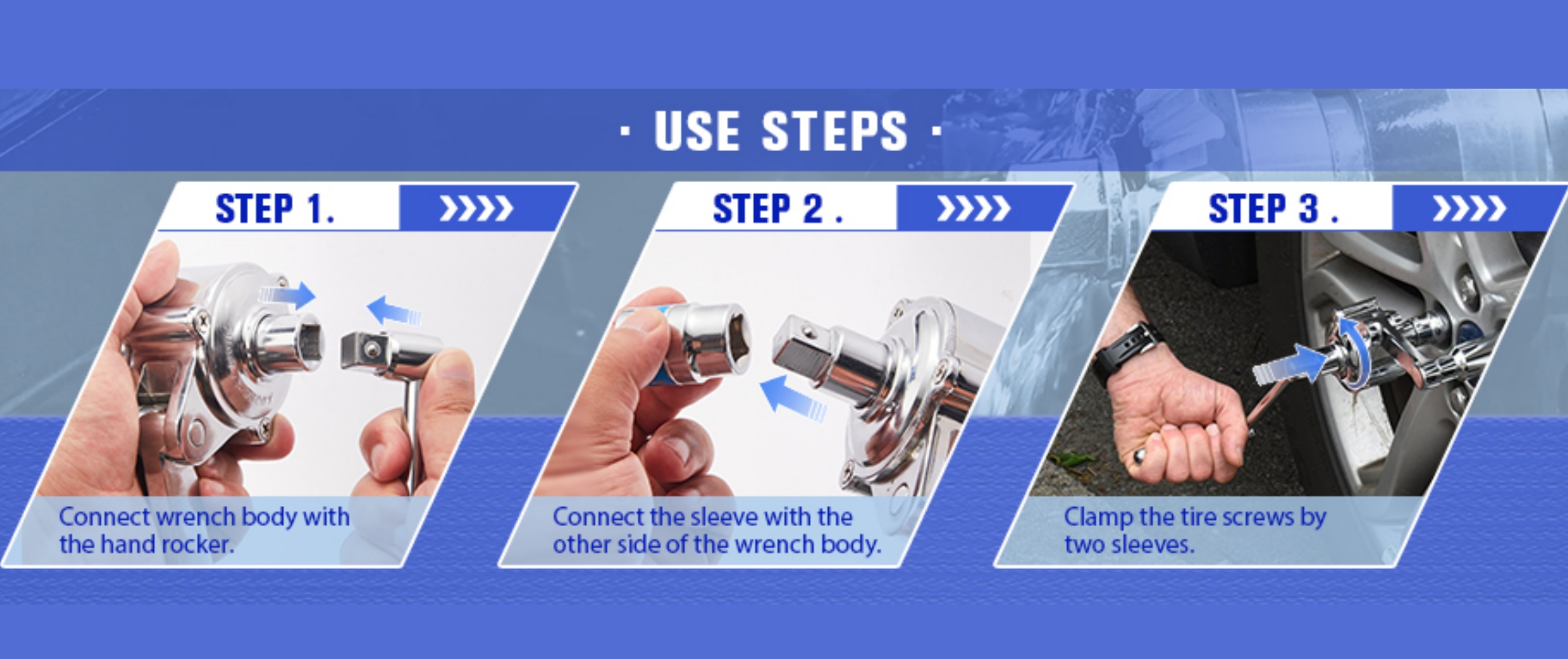

How to Use a Torque Multiplier?

Using a torque multiplier is relatively straightforward, but it is essential to follow proper procedures to ensure safety and accuracy. Here are the steps to effectively use a torque multiplier:

1.Select the Right Tool

Choose a torque multiplier that is suitable for the application and the size of the fastener you are working with.

2.Set the Torque Level

If your torque multiplier has adjustable settings, set it to the desired torque level according to the specifications for the fastener.

3.Attach the Tool

Connect the input side of the torque multiplier to your torque wrench or ratchet. Ensure that it is securely attached.

4.Position the Output Drive

Place the output drive of the torque multiplier onto the fastener you wish to tighten.

5.Apply Torque

Begin applying torque to the input side of the multiplier. The tool will amplify the torque applied to the fastener.

6.Monitor Torque Levels

If using a digital torque multiplier, keep an eye on the display to ensure you reach the desired torque level.

7.Release and Disconnect

Once the desired torque is achieved, release the pressure and disconnect the tool from the fastener.

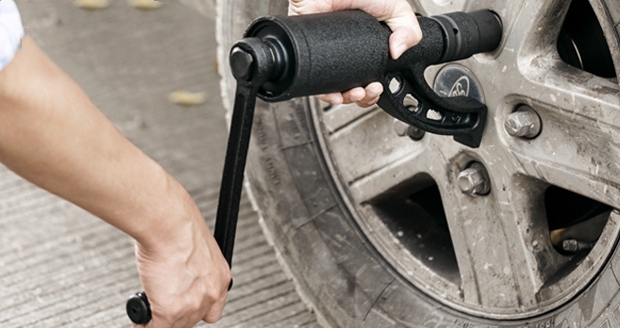

How to Choose the Right Torque Multiplier?

Choosing the right torque multiplier involves considering several factors:

1.Torque Requirements: Determine the maximum torque you need to apply for your specific application. This will help you select a multiplier with the appropriate torque range.

2.Type of Fastener: Consider the size and type of fasteners you will be working with. Different torque multipliers are designed for different sizes and types of fasteners.

3.Power Source: Decide whether you need a manual, pneumatic, electric, or hydraulic torque multiplier based on your work environment.

4.Gear Ratio: Look for a torque multiplier with a suitable gear ratio for your needs. Higher gear ratios will provide more torque amplification but may require more effort to operate.

5.Portability: If you need to use the tool in various locations, consider the weight and portability of the torque multiplier.

6.Budget: Finally, consider your budget. Torque multipliers come in a range of prices, so it’s essential to find one that meets your needs without breaking the bank.

Conclusion

Torque multipliers are invaluable tools that enhance efficiency, safety, and precision in various applications. Comprehending their operational mechanisms, the diverse types in the market, as well as the methods of usage and appropriate selection, can remarkably optimize your work procedures. Whether you are a professional mechanic, a construction worker, or a DIY enthusiast, investing in a quality torque multiplier can make your tasks easier and more effective.

Hope this article was helpful to you. We will continue to update the practical articles of hardware tools. MYWAY TOOLS is always by your side.
